Chart Description

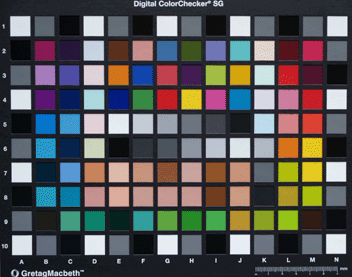

ColorChecker SG Chart

The ColorChecker SG (Semi Gloss) chart was designed specifically for digital photography. It is made up of 140 color patches, including the 24 colors from the original ColorChecker chart.

The patches around the outer edge of the chart allow you to judge the uniformity of illumination of the chart (a topic that is discussed further here). If you see that the lighting is not even across the chart, you are advised to correct this problem before proceeding to make the profile.


Reference File

GretagMacbeth (the manufacturer of the ColorChecker SG chart) does not include a reference file with the chart, but they do provide one which is included in the inCamera installation package. That file is named Digital ColorChecker SG.txt.

You should use that reference file, unless you have both the means and desire to create a custom reference file yourself.


Power Users Only: Custom Data Reference Files

If you wish to make a custom reference file, it must be in the following format.

The beginning and ending of Digital ColorChecker SG.txt is shown here:

LGOROWLENGTH	10
CREATED	"3/24/2004"  # Time: 20:14
INSTRUMENTATION	"eye-one"
MEASUREMENT_SOURCE	"WhiteBase=Absolute  Filter=No"
ILLUMINATION_NAME	"D50"
OBSERVER_ANGLE	"2"
KEYWORD	"SampleID"
KEYWORD	"SAMPLE_NAME"
NUMBER_OF_FIELDS	41
BEGIN_DATA_FORMAT
SampleID	SAMPLE_NAME	RGB_R	RGB_G	RGB_B	nm380	nm390	nm400	nm410	nm420	nm430	nm440	nm450	nm460	nm470	nm480	nm490	nm500	nm510	nm520	nm530	nm540	nm550	nm560	nm570	nm580	nm590	nm600	nm610	nm620	nm630	nm640	nm650	nm660	nm670	nm680	nm690	nm700	nm710	nm720	nm730
END_DATA_FORMAT
NUMBER_OF_SETS	140
BEGIN_DATA
1	A1	242.81	244.08	241.52	0.1365	0.2349	0.4385	0.6837	0.8452	0.9077	0.9231	0.9273	0.9322	0.9335	0.9337	0.9350	0.9345	0.9337	0.9335	0.9313	0.9335	0.9353	0.9317	0.9319	0.9276	0.9262	0.9239	0.9216	0.9209	0.9201	0.9219	0.9245	0.9268	0.9237	0.9214	0.9211	0.9219	0.9229	0.9234	0.9278
2	A2	25.95	26.52	26.99	0.0088	0.0083	0.0086	0.0085	0.0085	0.0084	0.0086	0.0084	0.0084	0.0085	0.0085	0.0085	0.0084	0.0084	0.0085	0.0084	0.0084	0.0084	0.0083	0.0083	0.0083	0.0083	0.0082	0.0083	0.0083	0.0083	0.0083	0.0083	0.0083	0.0083	0.0083	0.0083	0.0084	0.0083	0.0083	0.0084
3	A3	110.21	110.29	109.97	0.0658	0.1060	0.1522	0.1777	0.1851	0.1885	0.1918	0.1935	0.1938	0.1925	0.1915	0.1912	0.1910	0.1913	0.1919	0.1918	0.1920	0.1921	0.1925	0.1945	0.1952	0.1958	0.1951	0.1937	0.1920	0.1900	0.1882	0.1865	0.1851	0.1832	0.1812	0.1794	0.1779	0.1765	0.1747	0.1731
4	A4	242.53	244.27	241.88	0.1415	0.2396	0.4435	0.6895	0.8521	0.9147	0.9298	0.9340	0.9384	0.9397	0.9396	0.9407	0.9400	0.9391	0.9387	0.9365	0.9385	0.9401	0.9364	0.9365	0.9319	0.9303	0.9279	0.9256	0.9249	0.9240	0.9258	0.9284	0.9306	0.9274	0.9249	0.9248	0.9258	0.9269	0.9274	0.9320
5	A5	24.73	25.51	26.40	0.0089	0.0089	0.0089	0.0090	0.0089	0.0089	0.0088	0.0089	0.0090	0.0089	0.0088	0.0089	0.0088	0.0087	0.0086	0.0086	0.0086	0.0086	0.0086	0.0086	0.0086	0.0085	0.0086	0.0086	0.0086	0.0086	0.0086	0.0086	0.0087	0.0086	0.0086	0.0086	0.0087	0.0087	0.0086	0.0085
6	A6	110.61	110.76	110.51	0.0660	0.1066	0.1532	0.1784	0.1860	0.1895	0.1926	0.1943	0.1945	0.1931	0.1921	0.1918	0.1915	0.1919	0.1925	0.1924	0.1926	0.1928	0.1931	0.1951	0.1960	0.1963	0.1957	0.1943	0.1926	0.1905	0.1886	0.1871	0.1855	0.1835	0.1816	0.1799	0.1784	0.1770	0.1753	0.1735
7	A7	243.04	244.49	241.86	0.1423	0.2401	0.4435	0.6883	0.8499	0.9121	0.9274	0.9317	0.9364	0.9380	0.9384	0.9394	0.9388	0.9381	0.9379	0.9356	0.9377	0.9395	0.9360	0.9361	0.9316	0.9301	0.9279	0.9256	0.9250	0.9243	0.9263	0.9288	0.9311	0.9279	0.9257	0.9255	0.9264	0.9276	0.9284	0.9323
8	A8	26.01	26.57	27.21	0.0093	0.0097	0.0092	0.0091	0.0092	0.0090	0.0089	0.0090	0.0091	0.0090	0.0089	0.0089	0.0089	0.0089	0.0088	0.0088	0.0088	0.0087	0.0087	0.0087	0.0087	0.0087	0.0087	0.0086	0.0086	0.0086	0.0086	0.0086	0.0087	0.0087	0.0087	0.0086	0.0087	0.0087	0.0087	0.0086
9	A9	110.54	110.61	110.33	0.0663	0.1056	0.1512	0.1759	0.1831	0.1865	0.1896	0.1911	0.1913	0.1902	0.1891	0.1888	0.1887	0.1889	0.1894	0.1893	0.1894	0.1895	0.1898	0.1916	0.1925	0.1928	0.1921	0.1907	0.1890	0.1872	0.1854	0.1839	0.1824	0.1805	0.1784	0.1767	0.1752	0.1739	0.1721	0.1707
10	A10	243.16	244.24	241.41	0.1415	0.2399	0.4433	0.6890	0.8516	0.9141	0.9293	0.9335	0.9382	0.9397	0.9399	0.9414	0.9409	0.9404	0.9402	0.9380	0.9403	0.9420	0.9382	0.9384	0.9342	0.9326	0.9305	0.9281	0.9274	0.9266	0.9286	0.9313	0.9335	0.9304	0.9283	0.9284	0.9296	0.9306	0.9314	0.9368
11	B1	110.29	110.49	110.26	0.0650	0.1055	0.1507	0.1758	0.1829	0.1860	0.1891	0.1905	0.1908	0.1895	0.1885	0.1880	0.1877	0.1880	0.1885	0.1883	0.1884	0.1885	0.1888	0.1905	0.1915	0.1918	0.1910	0.1896	0.1880	0.1858	0.1842	0.1825	0.1812	0.1793	0.1773	0.1754	0.1740	0.1727	0.1710	0.1694
12	B2	134.54	19.42	86.41	0.0627	0.0963	0.1412	0.1637	0.1669	0.1574	0.1391	0.1183	0.0990	0.0827	0.0673	0.0541	0.0451	0.0379	0.0303	0.0240	0.0217	0.0223	0.0222	0.0239	0.0335	0.0625	0.1180	0.1908	0.2614	0.3181	0.3626	0.4017	0.4412	0.4819	0.5272	0.5792	0.6355	0.6883	0.7304	0.7631
13	B3	167.60	121.04	172.35	0.0915	0.1731	0.3193	0.4417	0.4867	0.4917	0.4822	0.4655	0.4455	0.4216	0.3916	0.3584	0.3286	0.3002	0.2637	0.2284	0.2149	0.2185	0.2177	0.2242	0.2638	0.3377	0.4087	0.4459	0.4530	0.4560	0.4753	0.5061	0.5376	0.5592	0.5733	0.5816	0.5876	0.5917	0.5931	0.5949
...
128	M8	188.60	173.10	-2.27	0.0143	0.0143	0.0141	0.0140	0.0143	0.0152	0.0173	0.0214	0.0296	0.0449	0.0693	0.1019	0.1471	0.2271	0.3508	0.4684	0.5351	0.5565	0.5512	0.5364	0.5111	0.4768	0.4315	0.3839	0.3477	0.3239	0.3075	0.2933	0.2847	0.2840	0.2913	0.3051	0.3230	0.3364	0.3390	0.3390
129	M9	70.32	36.09	24.98	0.0094	0.0106	0.0109	0.0110	0.0109	0.0108	0.0109	0.0109	0.0109	0.0112	0.0115	0.0119	0.0123	0.0128	0.0135	0.0143	0.0159	0.0195	0.0259	0.0351	0.0442	0.0508	0.0541	0.0547	0.0541	0.0532	0.0520	0.0513	0.0507	0.0499	0.0494	0.0489	0.0485	0.0480	0.0474	0.0470
130	M10	110.68	110.74	110.35	0.0652	0.1051	0.1516	0.1772	0.1841	0.1875	0.1905	0.1921	0.1925	0.1913	0.1901	0.1897	0.1895	0.1900	0.1905	0.1903	0.1906	0.1908	0.1911	0.1930	0.1938	0.1943	0.1935	0.1921	0.1905	0.1885	0.1867	0.1850	0.1837	0.1817	0.1799	0.1780	0.1765	0.1752	0.1735	0.1721
131	N1	242.47	243.85	241.14	0.1372	0.2361	0.4404	0.6859	0.8478	0.9099	0.9254	0.9296	0.9339	0.9353	0.9355	0.9367	0.9359	0.9350	0.9345	0.9322	0.9342	0.9357	0.9315	0.9315	0.9271	0.9256	0.9232	0.9206	0.9199	0.9192	0.9211	0.9238	0.9261	0.9229	0.9206	0.9202	0.9209	0.9219	0.9225	0.9265
132	N2	110.63	110.82	110.59	0.0667	0.1063	0.1522	0.1770	0.1843	0.1875	0.1906	0.1922	0.1925	0.1914	0.1903	0.1899	0.1898	0.1900	0.1906	0.1903	0.1906	0.1908	0.1910	0.1929	0.1938	0.1942	0.1935	0.1920	0.1903	0.1882	0.1865	0.1850	0.1835	0.1815	0.1796	0.1778	0.1764	0.1748	0.1730	0.1714
133	N3	24.47	24.76	25.40	0.0101	0.0102	0.0101	0.0102	0.0101	0.0099	0.0098	0.0099	0.0098	0.0097	0.0097	0.0097	0.0095	0.0095	0.0096	0.0095	0.0095	0.0095	0.0094	0.0095	0.0094	0.0093	0.0093	0.0094	0.0094	0.0094	0.0094	0.0094	0.0094	0.0094	0.0094	0.0094	0.0094	0.0095	0.0093	0.0094
134	N4	243.10	244.83	242.39	0.1406	0.2391	0.4430	0.6889	0.8508	0.9129	0.9280	0.9320	0.9365	0.9380	0.9379	0.9390	0.9383	0.9377	0.9373	0.9348	0.9370	0.9386	0.9347	0.9349	0.9308	0.9293	0.9268	0.9246	0.9241	0.9234	0.9252	0.9277	0.9299	0.9268	0.9244	0.9242	0.9254	0.9265	0.9270	0.9310
135	N5	110.60	110.83	110.56	0.0655	0.1052	0.1509	0.1759	0.1832	0.1866	0.1897	0.1912	0.1915	0.1903	0.1893	0.1887	0.1886	0.1889	0.1895	0.1893	0.1895	0.1896	0.1900	0.1918	0.1925	0.1928	0.1922	0.1908	0.1890	0.1870	0.1854	0.1837	0.1823	0.1804	0.1785	0.1768	0.1753	0.1740	0.1722	0.1704
136	N6	24.99	25.62	26.18	0.0098	0.0099	0.0099	0.0101	0.0100	0.0097	0.0099	0.0099	0.0099	0.0099	0.0098	0.0097	0.0097	0.0096	0.0096	0.0095	0.0095	0.0095	0.0095	0.0095	0.0095	0.0095	0.0095	0.0095	0.0095	0.0094	0.0095	0.0093	0.0094	0.0095	0.0095	0.0095	0.0095	0.0095	0.0095	0.0095
137	N7	243.42	245.01	242.48	0.1432	0.2408	0.4445	0.6896	0.8506	0.9126	0.9275	0.9320	0.9364	0.9381	0.9383	0.9397	0.9392	0.9387	0.9386	0.9364	0.9383	0.9398	0.9365	0.9365	0.9322	0.9308	0.9286	0.9264	0.9260	0.9252	0.9273	0.9299	0.9322	0.9287	0.9265	0.9268	0.9279	0.9289	0.9297	0.9337
138	N8	110.67	110.79	110.54	0.0652	0.1050	0.1512	0.1766	0.1839	0.1871	0.1903	0.1918	0.1920	0.1910	0.1898	0.1894	0.1893	0.1895	0.1901	0.1900	0.1902	0.1904	0.1906	0.1925	0.1934	0.1937	0.1930	0.1916	0.1900	0.1879	0.1864	0.1846	0.1831	0.1813	0.1794	0.1776	0.1760	0.1746	0.1729	0.1716
139	N9	24.05	24.48	25.05	0.0100	0.0100	0.0096	0.0092	0.0091	0.0091	0.0092	0.0091	0.0092	0.0091	0.0090	0.0089	0.0089	0.0089	0.0089	0.0089	0.0089	0.0088	0.0087	0.0089	0.0088	0.0088	0.0088	0.0087	0.0088	0.0087	0.0088	0.0087	0.0088	0.0089	0.0088	0.0088	0.0088	0.0087	0.0088	0.0089
140	N10	243.17	244.71	242.06	0.1427	0.2403	0.4441	0.6904	0.8530	0.9151	0.9301	0.9343	0.9385	0.9399	0.9400	0.9414	0.9407	0.9400	0.9399	0.9376	0.9396	0.9413	0.9377	0.9379	0.9335	0.9318	0.9295	0.9273	0.9267	0.9260	0.9276	0.9304	0.9327	0.9297	0.9274	0.9274	0.9283	0.9296	0.9304	0.9359
END_DATA


The patch measurements follow the BEGIN_DATA line, one per line. Each line begins with the data line number, followed by an identifier indicating the column (A through N) and the row (1 through 10), which is followed by the spectral measurement data for the patch. Each measurement consists of 36 numbers, which represent the spectral responses from 380 through 730 nm at 10 nm intervals.

Your measuring instrument may have come with software that can create a file in this format. If not, the easiest way to make a custom reference file that can be used with inCamera, is to copy the file that is included with inCamera, and then edit it with any text editor that can save plain (unformatted) text files.
